ACWA AquaPyr

Tertiary Solids Removal

The filter, developed over 4 years, has over 30 installations demonstrating its robustness within the municipal wastewater market and industrial wastewater streams.

Pile Cloth Media Filters (PCMF) have established themselves as a robust, compact and efficient process for the removal of suspended solid particles from municipal, industrial and stormwater streams.

However traditional PCMF produce large volumes of backwash water, around 2% of treated flow, however where sites have increased solids loading and reduced flow this has the potential to be as much as 18%, with the resulting potential to ‘flood’ the works due to the volumes of backwash water that is returned to the head of the works.

This can result in the need for the construction of additional storage and attenuation tanks to cope with this increased flow because of this filter backwash. Increasing the overall capital cost of these solutions over and above the filter and installation costs.

The AquaPyr filter uses a vacuum head to clean the media cloth and by contrast develops <0.5% waste as a percentage of treated flow with solids recovery as high as 0.6% Dry Solids, potentially negating the need for this extra capital outlay of storage tanks and site volume treatment increases. Reducing overall project capital cost and Programme Time, making it a particularly suitable solution for small rural works where space constraints are often an issue.

The AquaPyr Ultra Low Waste Filter

The cloth media is partially submerged in a tank with a continuous feed to it. The influent water, filters through the submerged portion of the filter drum and cloth filter media on which the solids are captured.

Unlike traditional cloth filters the AquaPyr filters from the outside to in. The centre of the drum collects the filtrate, which exits the drum through a pipe coupling that is connected to the side of the tank.

As more solids are collected on the filter media, the water level in the filter tank rises and reaches a level that activates the AquaPyr ULWF’s self-cleaning mechanism before the filter drum becomes fully submersed.

The AquaPyr ULWF is cleaned, while it continues to filter water, by rotating the filter drum under a low pressure vacuum cleaning head.

Unlike filters that backwash with filter water, this results in an extremely low volume of wastewater and solids, less than 0.5% of the treated flow which is collected in the bottom of the low-pressure chamber.

The residual sludge is then pumped away to the existing sludge tanks or returned to head of works.

With the solids removed from the filter cloth, the water level in the filter tank recedes to original levels and the cycle repeats itself.

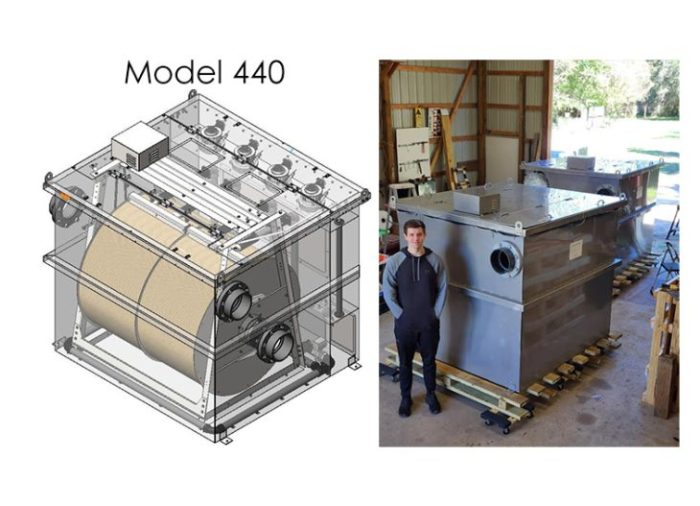

Filter Range and Key Features

The AquaPyr filters are available in a range of sizes with units available to treat from 5m3/h to 80m3/h allowing for the treatment at works of up to 2000PE.

Key Features

  • Designed for low flows
  • Low backwash volumes <0.5% of treated flow
  • High dry solids recovery >0.5% DS
  • Tertiary P Removal in conjunction with precipitation and flocculation
  • Low power consumption
  • Low head loss
  • Modular design package
  • Small footprint, minimal civils
  • Can be supplied with renewables energy pack

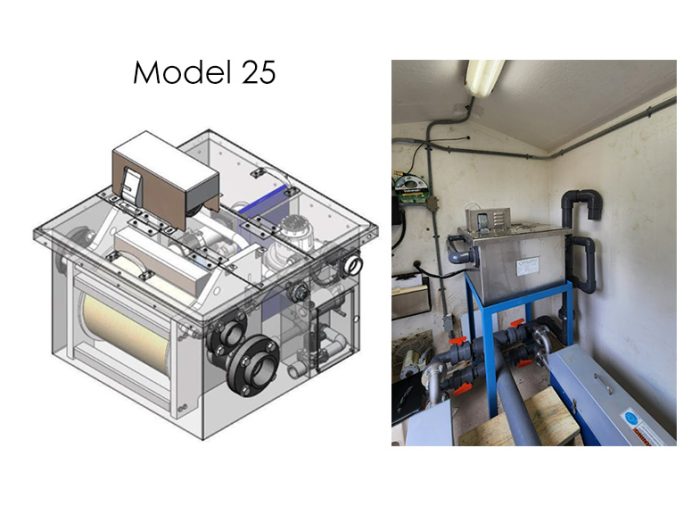

AquaPyr Filter Model 25

In finding the best solutions we look at innovative ideas and turn them into reality producing some of the most sustainable technological solutions on the market.

Contact us

Bo'ness Test Results

Following on from successful tests at Cranfield University, further trials have been completed at the Scottish Water Horizons facility at Bo'ness.

These trials were carried out looking at the TSS efficiency of the filter on both primary and final effluent further proved the efficiency and robustness of the technology within wastewater treatment.

Design

Sub Assembly Design

  • Most items serviceable in <20 minutes
  • No special tools
  • No special skills

High Quailty Materials

  • All stainless steel
  • Industrial components
  • WIMES compliant panel
